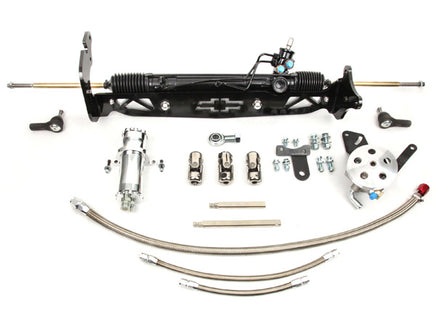

On this kit we used a traditional style rear steer rack & pinion that is mounted to a one piece bracket which bolts up to the outside of either frame rail in the same holes as the original steering box and idler arms.
This kit is for rear wheel drive vehicles only, NOT 4x4s. Installs have been done on V-8s, so there should be room if using a 6 Cylinder. There is quite a bit of room for the shaft support, but some headers may require modification. A two groove pulley on your water pump is required for this kit.
Note: If using drum brake spindles order kit 8011900-01.
Click to view instruction sheet
Pinion Type/Size: 3/4"-DD
Amount of Travel: 5.75"
Turns Lock to Lock: 2-7/8 Turns
Pressure Port Size: Straight to #6 AN (upper)
Return Port Size: Straight to #6 AN (lower)
Pump Required: Low Flow
Inner End Threads: M14 x 1.5
Outer ends: 8026690
Rack and Pinion
Outer Tie Rod Ends
Pump and Line Kit
Steering Shaft Kit
