The G-body kit is a front steer rack and is bolted to a one piece bracket that mounts to the inside of your frame rails. It utilizes the same bolt holes that your steering box and idler arm were attached to. The kit was designed to match the stock pivot points on the vehicle which will not only make it handle well, but also reduce bump steer. The pump with mounting bracket for small block applications, the u-joints, steering shafts and sway bar link kits are all there to get it done quickly and easily. This unit has fit with Hooker Competition, and Super Competition headers.
Note: On some aftermarket engine blocks, the deck height may be raised by up to 0.4". This may affect your exhaust header location.
Note: Some aftermarket cylinder heads may have a raised exhaust floor, anywhere from 0.25"-0.4" which may also affect your header locations.
Click to view instruction sheet
Tech Info:
Pinion Type/Size: 3/4"-36 Spline
Amount of Travel: 7"
Turns Lock to Lock: 3 Turns
Pressure Port Size: 18mm - 6AN Banjo
Return Port Size: 16mm - 6AN Banjo
Pump Required: High Flow/Pressure
Inner End Threads: M14 x 1.5
Outer ends: 8020940

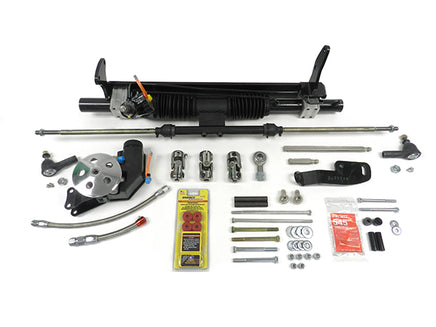

Kit Includes:
Rack and Pinion
Mounting Bracket
Mounting Hardware
Outer Tie Rod Ends
Pump and Line Kit
Steering Shaft Kit
