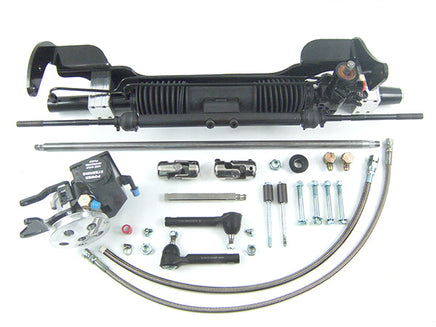

This kit uses a rear steer center take off rack & pinion mounted to a solid one piece bracket which bolts up to the frame using the original holes for the steering box and Idler Arm. This kit works with Small Block Motor cars only. It will fit with the 221, 260, 289, 302, and 351W motors. Installs have been done using Hooker Long Tube Headers or Competition Headers. Other headers may work, but may require modification.
Note: This kit will not work with the factory column shifter, but it will work with an aftermarket column shifter.
Click to view instruction sheet
Pinion Type/Size: 17mm DD
Amount of Travel: 6"
Turns Lock to Lock: 2.5 - 2.75 Turns
Pressure Port Size: 18mm - 6AN Banjo
Return Port Size: 16mm - 6AN Banjo
Pump Required: Low Flow / Pressure
Inner End Threads: 9/16"-18
Outer ends: Included
Rack and Pinion
Outer Tie Rod Ends
Pump & Line Kit
Steering Shaft Kit
