1966-67 Fairlane Rack & Pinion for Popular Small Blocks

Rack and Pinion - Power - 1966-67 Fairlane - 289-351W - 8011960-01


SKU: 8011960-01

This kit uses a rear steer center take off rack & pinion mounted to a solid one piece bracket which bolts up to the frame using the original holes for the steering box and Idler Arm. This kit is specific to Fairlane's only, not for other model Fords of the same year. This kit works with Small Block Motors only. Installs have been done on vehicles with the 289 & 302 motors in them. Stock manifolds should work, otherwise use Hooker Long Tube or Competition Headers. Other headers may work, but may require modification.

Two sets of outers are included to match either sized taper found on the steering arms of these cars.

Note: This kit will not work with the factory column shifter, but it will work with an aftermarket column shifter.

Click to view instruction sheet

Tech Info:

Pinion Type/Size:  17mm DD

Amount of Travel:  6"

Turns Lock to Lock:  2.5-2.75 Turns

Pressure Port Size:  18mm Banjo - 6 AN

Return Port Size:  16mm Banjo - 6 AN

Pump Required:  Low Flow / Pressure

Inner End Threads:  9/16"-18

Outer ends:  Included

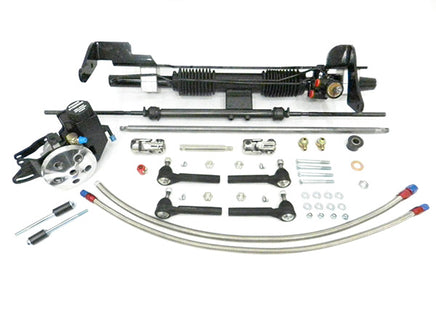

Kit Includes:

Rack and Pinion

Mounting Bracket

Mounting Hardware

Outer Tie Rod Ends

Pump and Line Kit

Steering Shaft Kit
