1955-57 Ford Thunderbird Rack and Pinion Kit

1955-57 Ford Thunderbird Rack and Pinion Kit - 8011690


SKU: 8011690

This kit is based on a rear steer center take-off style rack & pinion, as are the majority of our kits, but this one is specific to these Thunderbirds. The rack & pinion is mounted to a one piece mounting bracket which bolts to the frame using the same holes for the steering box and the idler arm on the passenger side.

The UniSteer kit was designed to go on a Thunderbird with stock suspension and 272, 292, and 312 motors. Let us know and we can modify the kit to fit popular small block motors, like the 289, 302, and 351 before shipping . Install was done on a vehicle with stock exhaust manifolds. Headers may work, but might need modification.

Let your sales person know, or make the appropriate selection in the menu above to accommodate the right small block motor or an aftermarket column.

Click to view instruction sheet

Tech Info:

Pinion Type/Size:  17mm DD

Amount of Travel:  6"

Turns Lock to Lock:  2.5 - 2.75 Turns

Pressure Port Size:  18mm - 6AN Banjo

Return Port Size:  16mm - 6AN Banjo

Pump Required:  Low Flow / Pressure

Inner End Threads:  9/16"-18

Outer ends:  Included

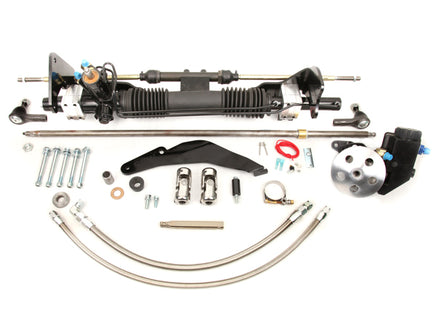

Kit Includes:

Rack and Pinion

Mounting Bracket

Mounting Hardware

Outer Tie Rod Ends

Pump and Line Kit

Steering Shaft Kit
