1963-82 Corvette Power Rack and Pinion Kit

1963-82 Corvette Power Rack and Pinion Kit - 8011540


SKU: 8011540

UniSteer's Power Rack kits utilize center take off style rear steer rack & pinions with a ball center which matches the original center link for these Vettes. Geometrically correct - No Bump Steer! The racks come on one piece mounting brackets which bolt on using the same factory holes for the steering box and idler arm. These kits clear the Z-Bar and 4 Speed Linkage with no problem. The kits have worked on Small Block motor cars with stock manifolds, short or long tube headers.

Pump and Shaft Kits are not included in the basic rack kits due to differences in the year break down for Vettes. We do recommend trying our pump and shaft kit, but that is up to you.

Nore: This kit will not work with 68'-82' Big Block applications.

Click to view instruction sheet

Tech Info:

Pinion Type/Size:  17mm DD GM

Amount of Travel:  6"

Turns Lock to Lock:  2.5 - 2.75 Turns

Pressure Port Size:  18mm - 6AN Banjo (Lower)

Return Port Size:  16mm - 6AN Banjo (Upper)

Pump Required:  Low Flow / Pressure

Inner End Threads:  14mm x 1.5

Outer ends:  8020940

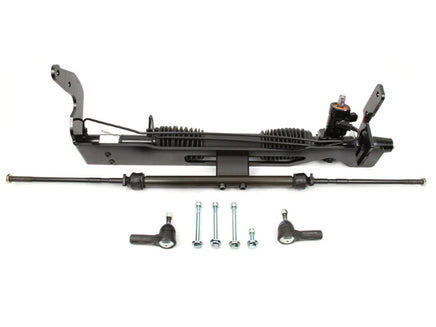

Kit Includes:

Rack and Pinion

Mounting Bracket

Mounting Hardware
