Rack and Pinion - Power - 1975-81 Firebird/Trans-Am - 8011110-01

SKU: 8011110-01

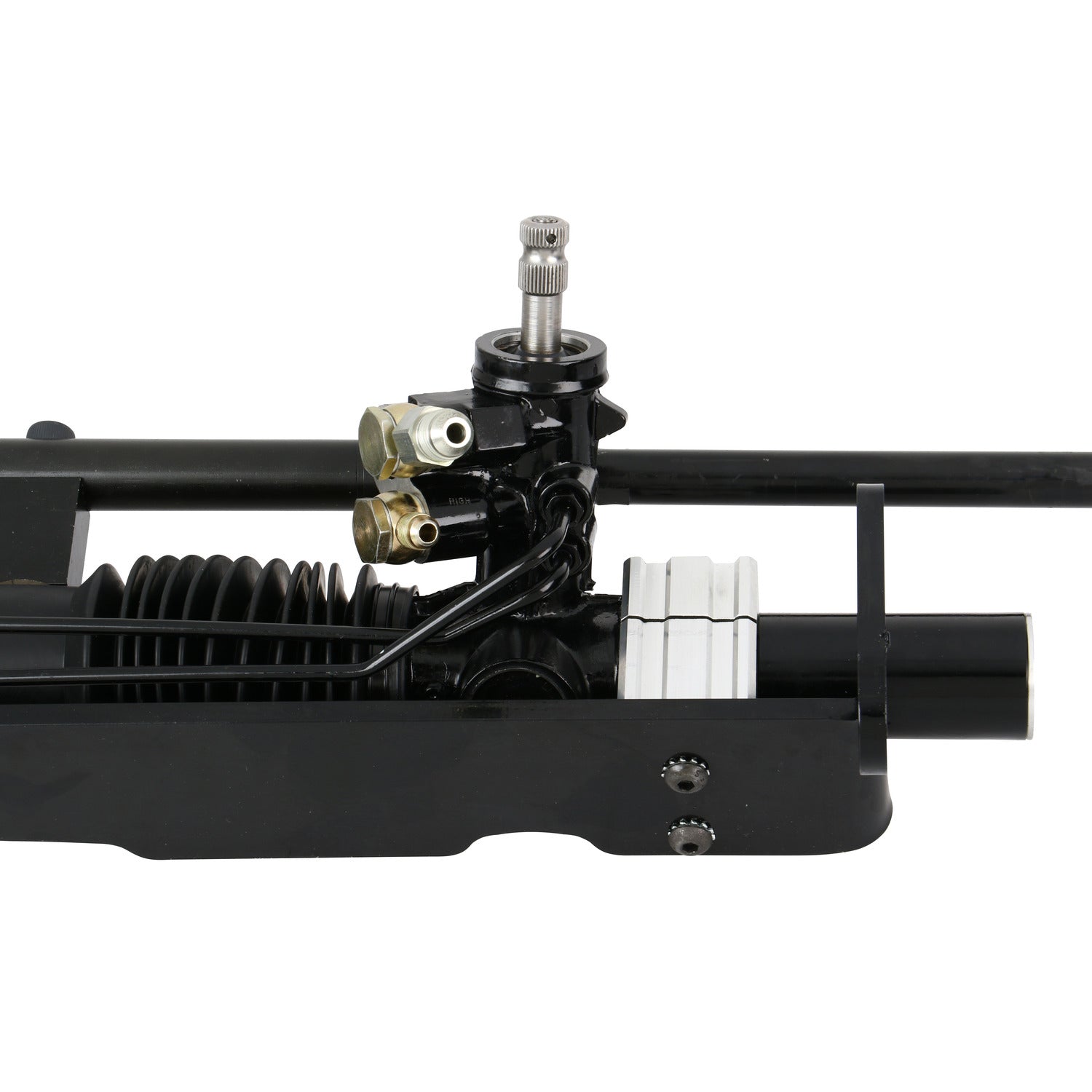

For this Pontiac kit we used a front steer, center take-off style rack and pinion made to match the original center-link of these cars. The rack and pinion match the stock front suspension for great handling, responsiveness, and no bump steer! The rack comes mounted to a one piece bracket which bolts up to the same factory holes on the frame that held the steering box and idler arm.

We did our first install on a 455, and we used Dynomax Headers (Their Part #86104). Other headers may work, but might require modifications.

Click to view instruction sheet

Tech Info:

Pinion Type/Size:  3/4" - 36 Spline

Amount of Travel:  6.75"

Turns Lock to Lock:  3 Turns

Pressure Port Size:  18mm - 6 AN Banjo (lower)

Return Port Size:  16mm - 6 AN Banjo (upper)

Pump Required:  High Flow / Pressure

Inner End Threads:  11/16-18 Female

Outer ends:  Reuse Originals

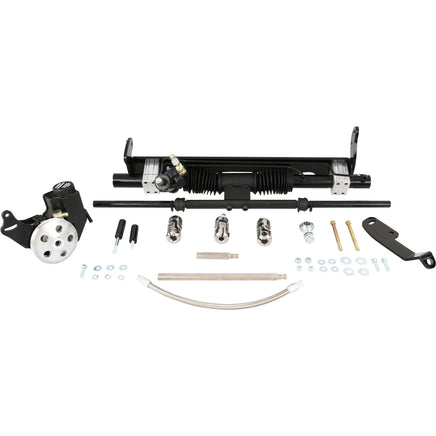

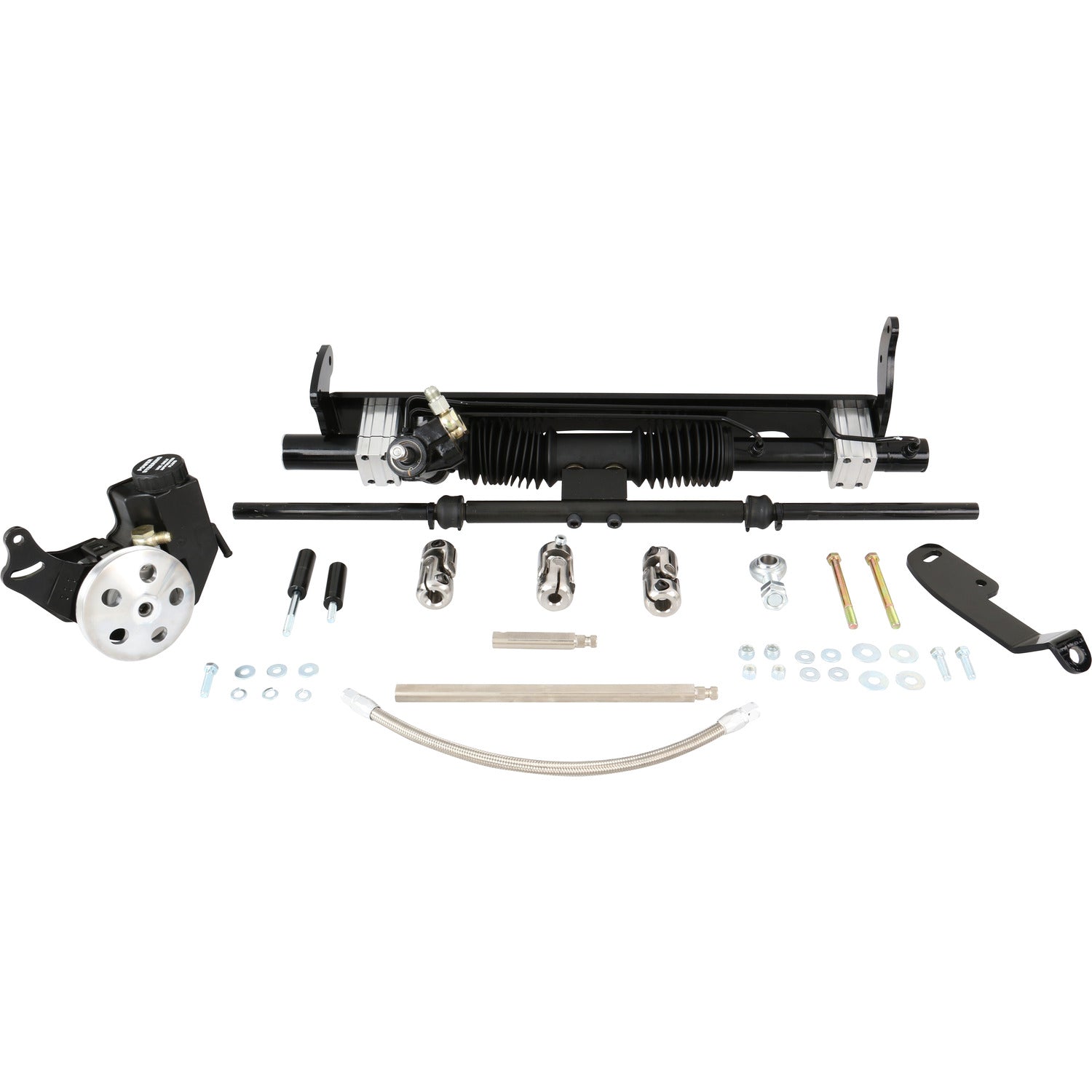

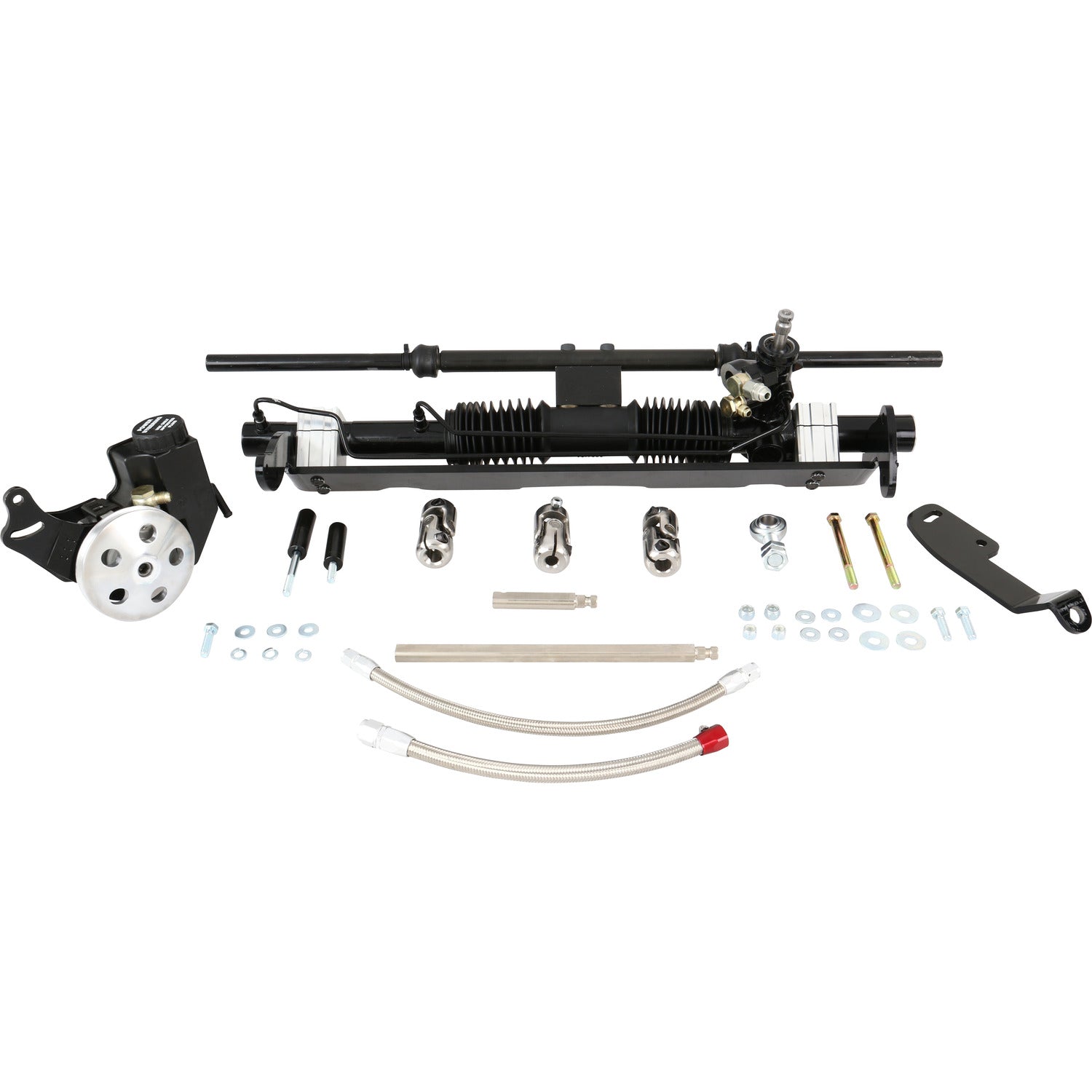

Kit Includes:

Rack and Pinion

Mounting Bracket

Mounting Hardware

Pump and Line Kit

Steering Shaft Kit
